YJ Series

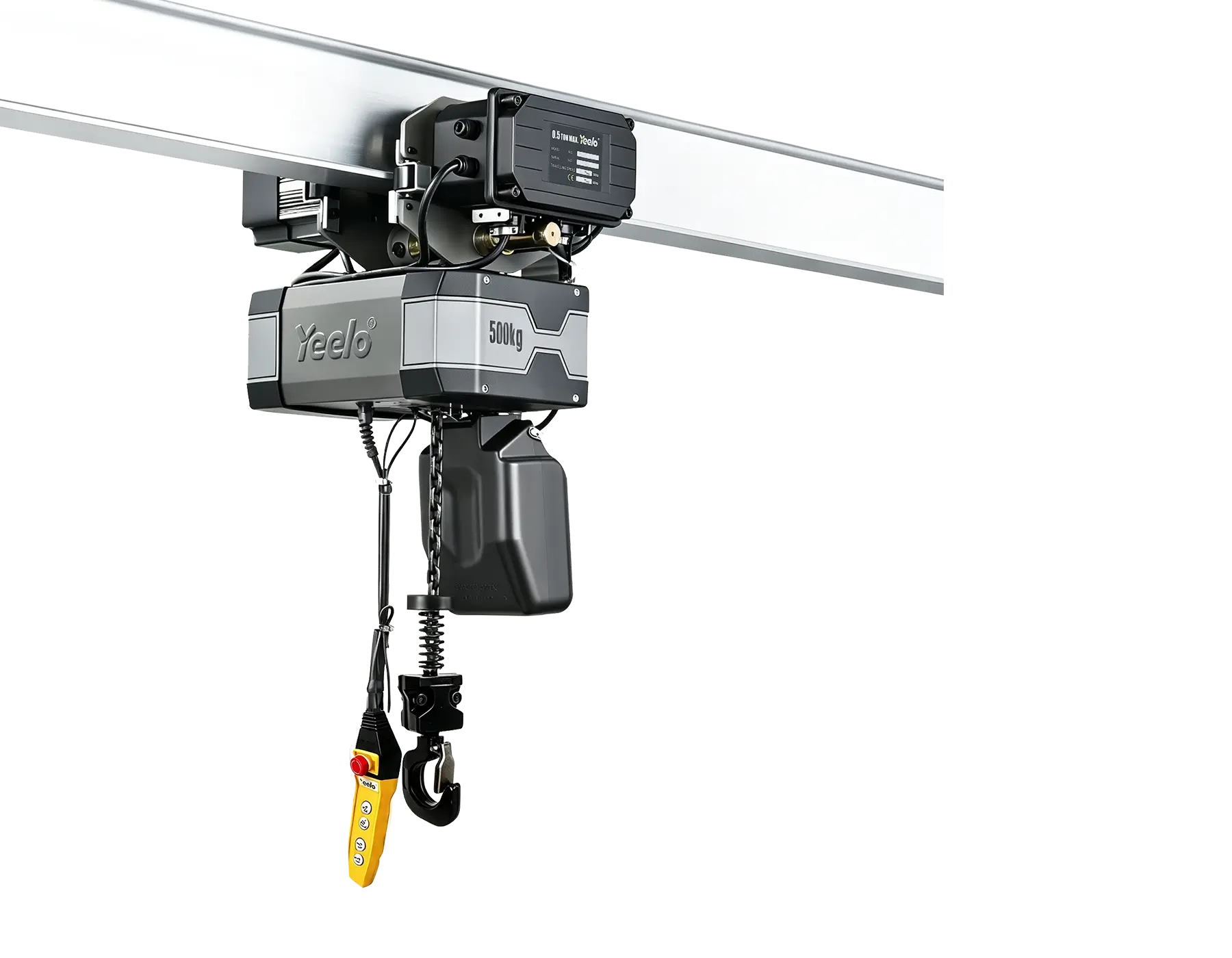

The YEELO 0.5 ton single chain electric hoist 220v with trolley is engineered for heavy-duty industrial applications, featuring fully motorized 4-way
movement to ensure maximum productivity and safety.
ELECTRIC CHAIN HOIST
YJ Series 500kg
Electric Chain Hoist
Precision Lifting on 220V Power. Built to Last.
The ultimate 0.5 Ton Single Chain Electric Hoist 220V with Electric Trolley for heavy-duty industrial applications. Features seamless 4-way electric movement (up, down, left, and right) and rigorous CE/ISO safety mechanisms to ensure zero downtime on your production line.
500 kg
Capacity
4m
Lift Height
8 m/min
Lifting Speed
3 Phase
220v
PRODUCT OVERVIEW
Built for Safety
Designed for Productivity.
The YJ Series Electric Chain Hoist with Electric Trolley combines rugged construction with advanced engineering for reliable performance in demanding industrial environments. Compact, durable, and easy to operate — the ideal mobile lifting solution for modern production lines. As a lightweight yet powerful unit, this 0.5 Ton Single Chain Electric Hoist 220V ensures smooth and efficient high-frequency lifting and precise horizontal traveling.
20CrMnTi Alloy Gears: Carburized & Quenched for Ultimate Durability
One-Piece Die-Cast Aluminum Body with EBS for Rapid Heat Dissipation
ABS Polymer Pendant: High Electrical Insulation for Operator Safety
Designed for versatile applications, the 0.5 ton single chain electric hoist 220v with trolley offers exceptional maneuverability and space-saving efficiency for your workshop.

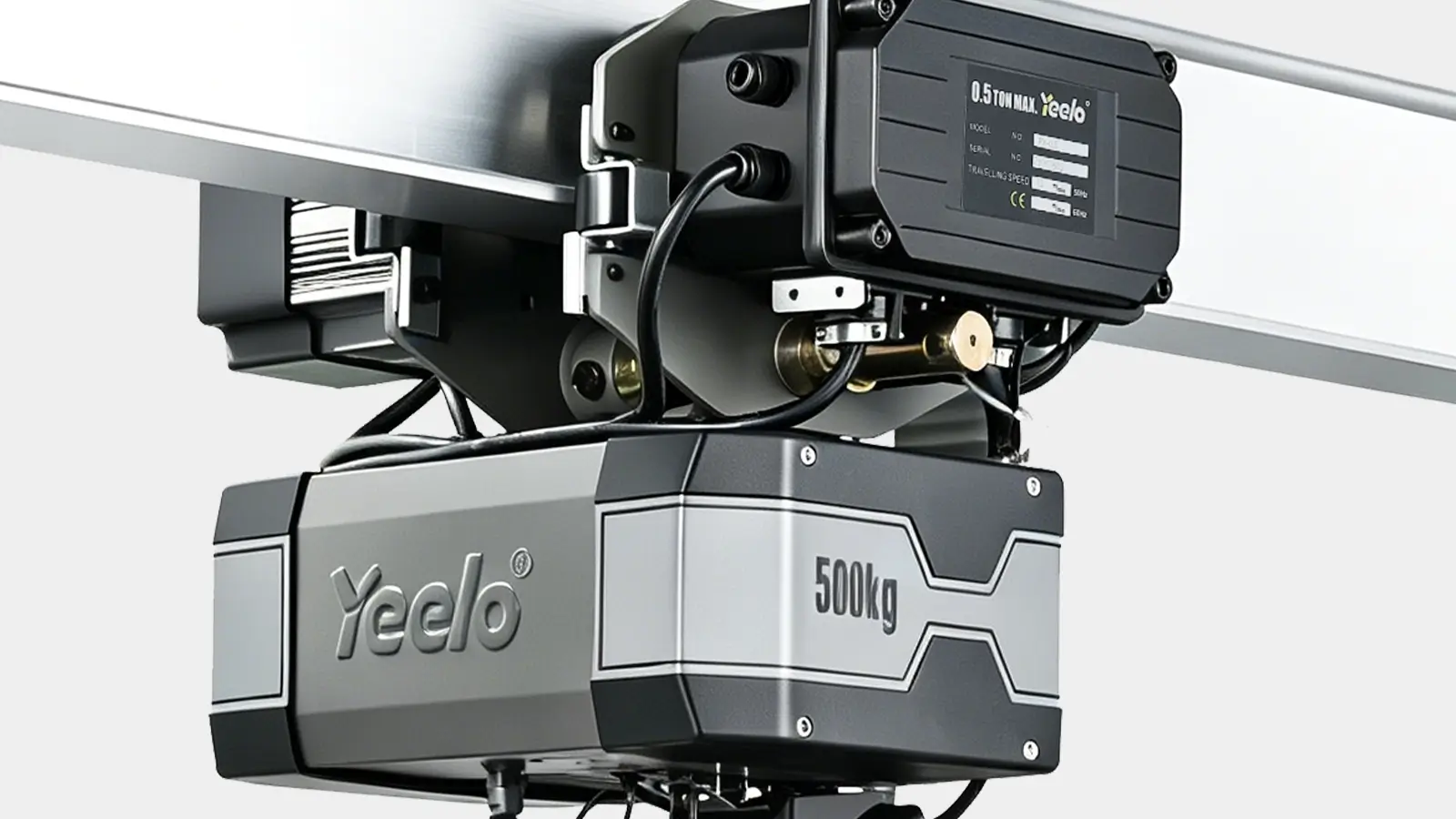

Heavy-Duty M5 Motor & Precision Braking
Engineered for high-frequency operations, the YEELO hoist features a continuous-duty M5 class motor combined with an advanced electronic braking system. This ensures instant stopping power, absolute load control, and zero load drift, maximizing your workstation productivity.
Fail-Safe Dual Limit Switches
Safety is non-negotiable. Integrated upper and lower limit switches automatically cut power to prevent over-travel. Once the maximum height is reached, the system strictly locks upward movement while allowing safe descent, completely eliminating the risk of structural damage.
Ultra-Quiet Operation
Precision-machined internal components and a refined gear system deliver near-silent running. With only minimal sound during initial brake engagement, it significantly reduces workplace noise pollution, creating a better environment for your operators.
Vibration-Free Stable Lifting
Experience seamless and stable material handling. The advanced mechanical design guarantees smooth lifting and lowering without any jitter or bouncing, perfectly suited for the precise positioning of sensitive equipment, molds, or heavy loads.
TECHNICAL HIGHLIGHTS
Dual Limit
Switch
Electronic
Brake
G80 Manganese
Steel Chain
Ultra-Quiet
Operation
Compact
Design
CE
Certified
TECHNICAL SPECIFICATIONS
YJ-0.5-01 Specifications
The YEELO YJ05 0.5 Ton Single Chain Electric Hoist 220V with Motorized Trolley is manufactured to rigorous CE and ISO standards. Built with a continuous-duty M5 motor and premium G80 manganese steel chain, it delivers uncompromising safety and precision for your high-frequency industrial lifting and traveling needs.
Model
YJ-0.5-01
Capacity
500 kg
Standard Lift
4 m (Custom lengths available)
Lifting Speed
8 m/min
walking speed
21 m/min
Motor Power
0.8 kW
Power Supply
220V【Single Phase】
Load Chain
Ø6.3 mm G80 Manganese Steel
Duty Class
M5
Protection Class
IP54
Operating Temperature
-30°C to +100°C

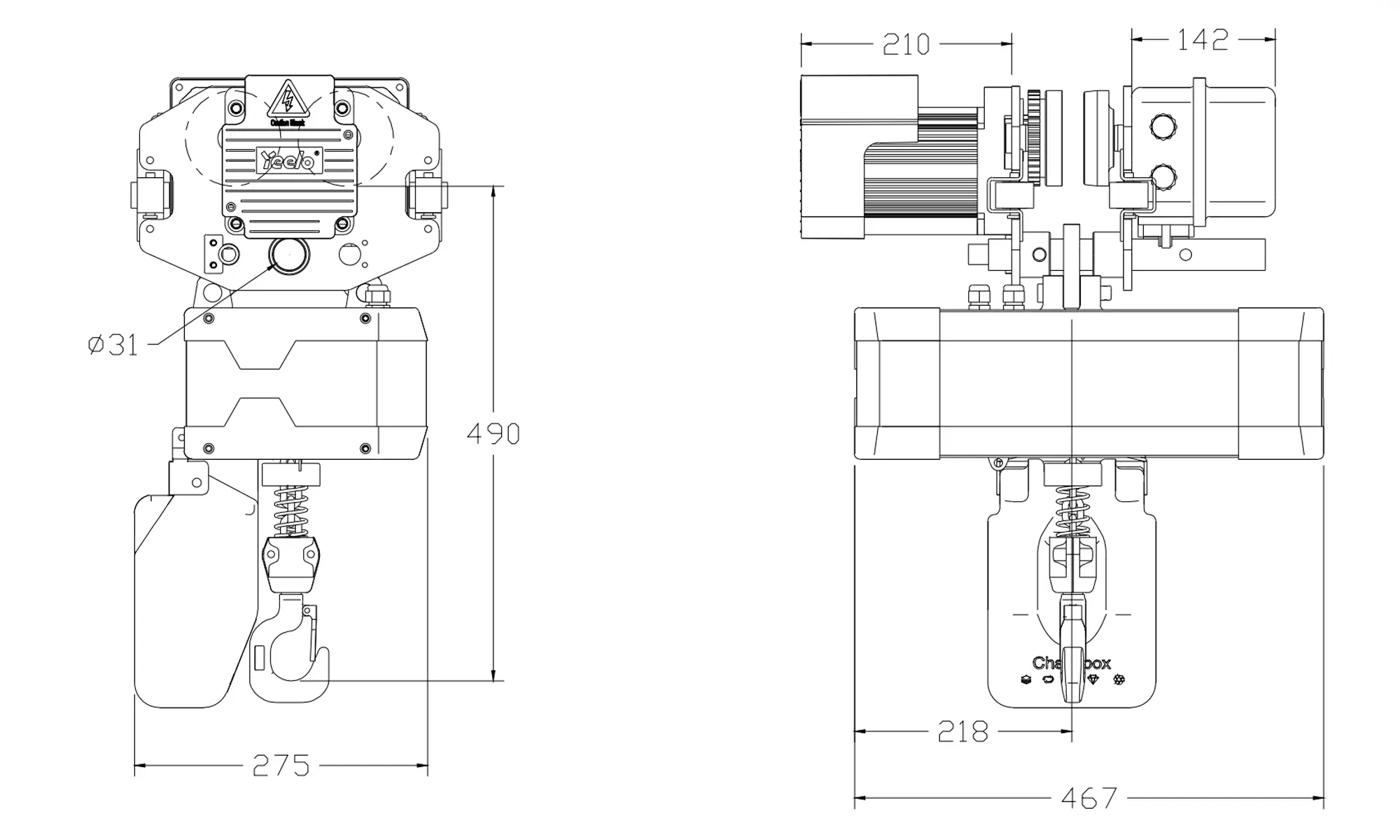

For detailed specifications of the 0.5 Ton Single Chain Electric Hoist 220V with Electric Trolley, please refer to the technical drawing below.
APPLICATIONS
Independent
Workstations
Automotive
Assembly
Heavy
Manufacturing
Construction
Projects
Precision
Machining
Warehousing
Logistics
Request a Quote for the 0.5 Ton Single Chain Electric Hoist 220V with Trolley
Contact YEELO today to get the best factory price and customized solutions for the 0.5 ton single chain electric hoist 220v with trolley
All our manufacturing processes strictly comply with international ISO standards.
