YJ Series
The YEELO 1 Ton Intelligent Hoist is engineered for high-frequency industrial applications such as CNC machining and assembly lines,
ensuring maximum productivity and safety through precise servo control.

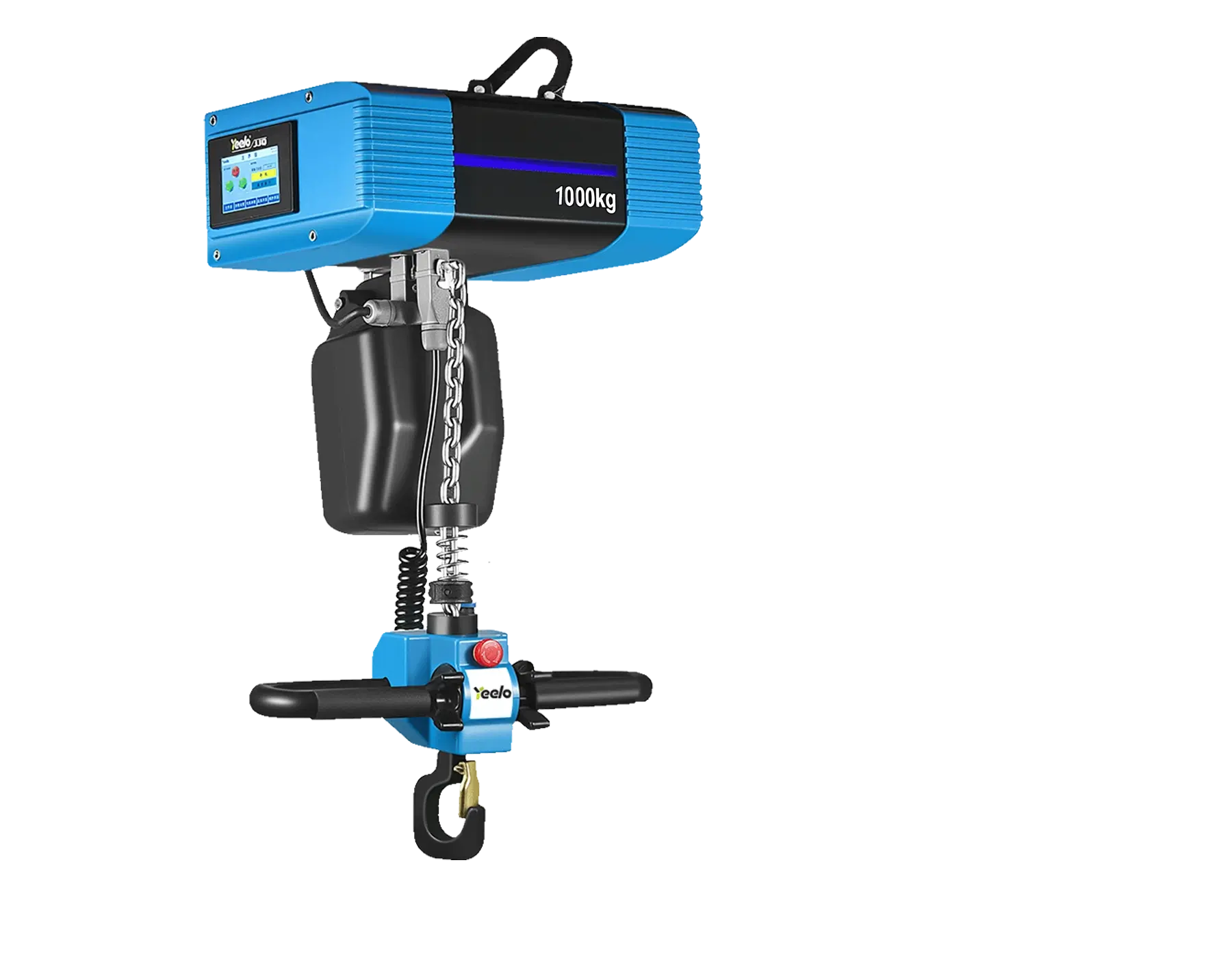

ELECTRIC CHAIN HOIST
YJ Series 1000kg
Electric Chain Hoist
Precision Lifting. Intuitive Stepless Control.

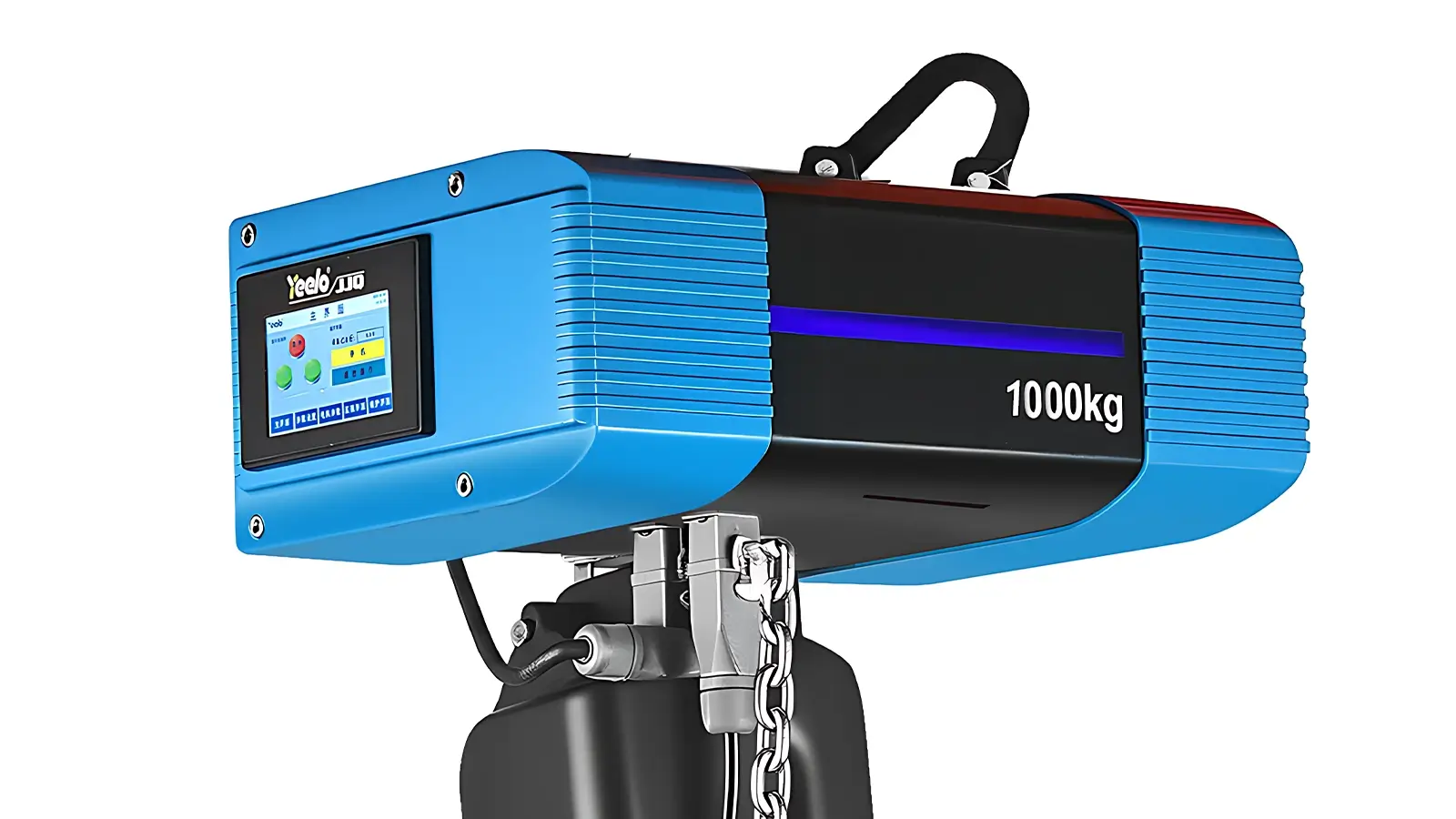

The ultimate 1 Ton Intelligent Hoist for modern workstations. Engineered with a smart LCD screen and a 1.5kW motor, it features stepless variable speeds from 0.5 to 16m/min, controlled intuitively by a pressure-sensitive paddle handle.
1000 kg
Capacity
4m
Lift Height
0.5-16 m/min
Lifting Speed
3 Phase
220 - 480v
PRODUCT OVERVIEW
Built for Safety
Designed for Productivity.
This Intelligent Assist Device combines cutting-edge servo technology with rugged mechanical design for effortless load handling. The 1 Ton Intelligent Hoist is equipped with a premium 7.1mm galvanized load chain, M5 duty class rating, and 20CrMnTi carburized gears that offer 3 times the lifespan, making it the ideal lifting solution for fast-paced industrial environments.
20CrMnTi Alloy Gears: Carburized & Quenched for Ultimate Durability
One-Piece Die-Cast Aluminum Body with EBS for Rapid Heat Dissipation
ABS Polymer Pendant: High Electrical Insulation for Operator Safety
CORE ADVANTAGES
Heavy-Duty M5 Motor & Precision Braking
Engineered for high-frequency operations, the YEELO hoist features a continuous-duty M5 class motor combined with an advanced electronic braking system. This ensures instant stopping power, absolute load control, and zero load drift, maximizing your workstation productivity.
Fail-Safe Dual Limit Switches
Safety is non-negotiable. Integrated upper and lower limit switches automatically cut power to prevent over-travel. Once the maximum height is reached, the system strictly locks upward movement while allowing safe descent, completely eliminating the risk of structural damage.
Ultra-Quiet Operation
Precision-machined internal components and a refined gear system deliver near-silent running. With only minimal sound during initial brake engagement, it significantly reduces workplace noise pollution, creating a better environment for your operators.
Vibration-Free Stable Lifting
Experience seamless and stable material handling. The advanced mechanical design guarantees smooth lifting and lowering without any jitter or bouncing, perfectly suited for the precise positioning of sensitive equipment, molds, or heavy loads.
TECHNICAL HIGHLIGHTS
Dual Limit
Switch
Electronic
Brake
G80 Manganese
Steel Chain
Ultra-Quiet
Operation
Compact
Design
CE
Certified
TECHNICAL SPECIFICATIONS
YJ-01-01 Specifications
The YEELO 1 Ton Intelligent Hoist is manufactured to rigorous CE and ISO standards, supporting a wide 110V-480V voltage range. Built with an electronic braking system, dual limit switches to prevent over-hoisting, and reliable power-off protection, it ensures uncompromising safety and pinpoint positioning accuracy for your single-workstation lifting needs.
Model
YJ-01-01
Capacity
1000 kg
Standard Lift
4 m (Custom lengths available)
Lifting Speed
0.5-16 m/min
Motor Power
1.5 kW
Power Supply
3-Phase, 380V (Voltage customizable upon request)
Load Chain
Ø7.1 mm G80 Manganese Steel
Duty Class
M5
Protection Class
IP54
Operating Temperature
-30°C to +100°C

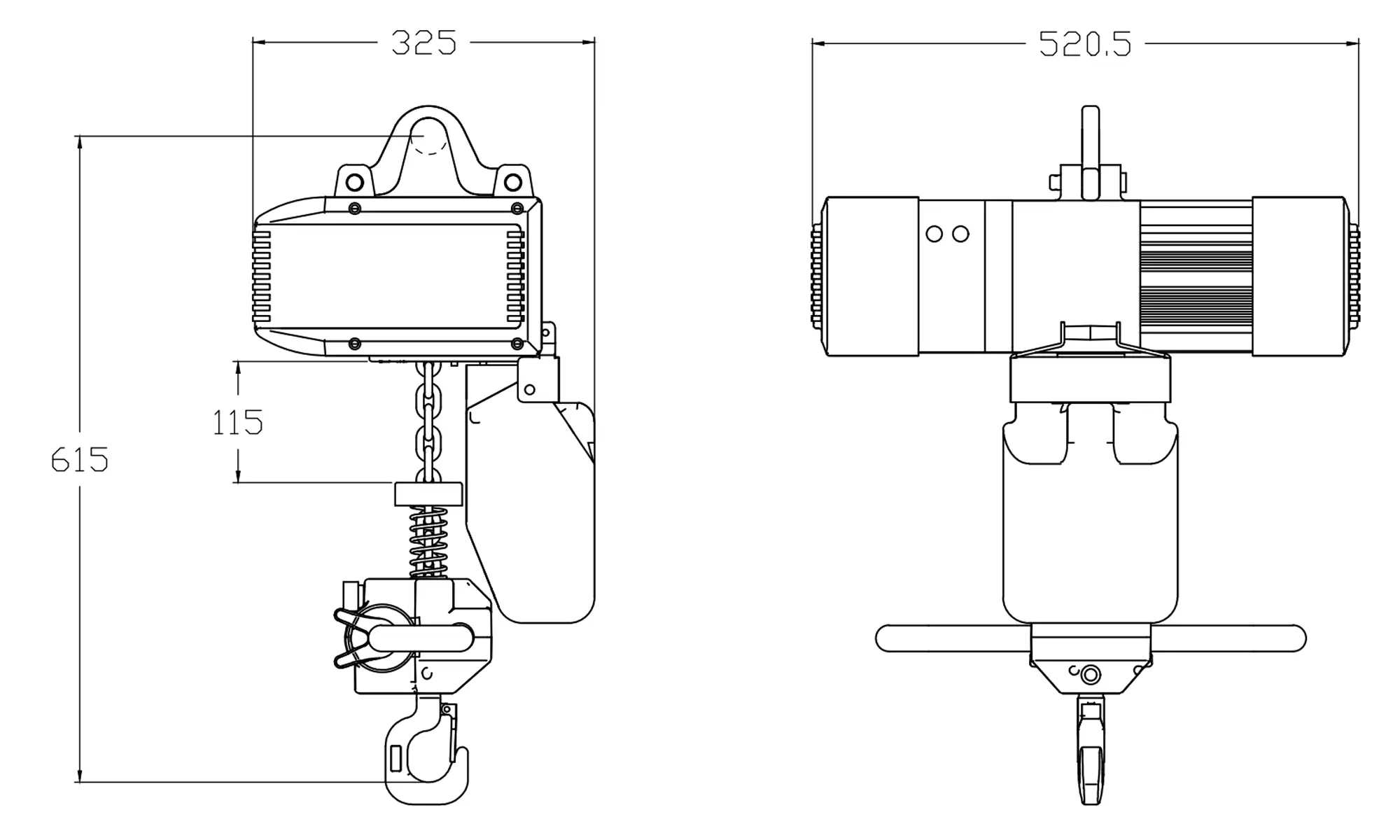

For detailed specifications of the 1 Ton Intelligent Hoist (Intelligent Assist Device), including LCD interface settings and paddle handle operation, please refer to the technical drawing below.
STRUCTURES
G80 Manganese Steel Chain
This 1 Ton Single Chain Electric Chain Hoist is equipped with a premium G80 manganese steel load chain.
M5 Duty Motor & Brake
Continuous-duty motor paired with an instant electronic brake for absolute high-frequency load control.
20CrMnTi Alloy Gears
Carburized and quenched for ultra-quiet, vibration-free, and smooth power transmission.
ABS Polymer Pendant
High-insulation casing with an integrated E-stop, guaranteeing safe and highly responsive vertical operation.
APPLICATIONS
Independent
Workstations
Automotive
Assembly
Heavy
Manufacturing
Construction
Projects
Precision
Machining
Warehousing
Logistics
Request Factory Pricing for the 1 Ton Intelligent Hoist
Leave your specific requirements below. Get the latest factory pricing on this 1 Ton Intelligent Hoist, engineered with smart stepless speed control and a premium 7.1mm galvanized load chain for ultimate lifting precision.
All our manufacturing processes strictly comply with international ISO standards.
