YJ Series
The YEELO 1 Ton Single Chain Low Headroom Electric Hoist is engineered for heavy-duty industrial applications,,
ensuring maximum productivity and safety.
ELECTRIC CHAIN HOIST
YJ Series 1000kg
Electric Chain Hoistt
Precision Lifting. Built to Last.
The ultimate 1 Ton Single Chain Low Headroom Electric Hoist for heavy-duty industrial applications. Engineered to CE and ISO standards, it features a 1.5kW hoist motor and 0.4kW traveling motor, 8m/min lifting speed, 21m/min traveling speed, and premium 7.1mm G80 load chain to ensure zero downtime.
1000 kg
Capacity
4m
Lift Height
8 m/min
Lifting Speed
3 Phase
220 - 480v
PRODUCT OVERVIEW
Built for Safety
Designed for Productivity.
The YJ Series Electric Chain Hoist combines rugged construction with advanced engineering for reliable performance in demanding industrial environments. Compact, durable, and easy to operate — the ideal lifting solution for modern production lines. This 1 Ton Single Chain Low Headroom Electric Hoist features a 1.5kW hoist motor and 0.4kW traveling motor, and a heavy-duty 7.1mm G80 manganese steel load chain, guaranteeing smooth operations at an 8m/min lifting speed and 21m/min horizontal traveling speed.
20CrMnTi Alloy Gears: Carburized & Quenched for Ultimate Durability
One-Piece Die-Cast Aluminum Body with EBS for Rapid Heat Dissipation
ABS Polymer Pendant: High Electrical Insulation for Operator Safety
CORE ADVANTAGES
Heavy-Duty M5 Motor & Precision Braking
Engineered for high-frequency operations, the YEELO hoist features a continuous-duty M5 class motor combined with an advanced electronic braking system. This ensures instant stopping power, absolute load control, and zero load drift, maximizing your workstation productivity.
Fail-Safe Dual Limit Switches
Safety is non-negotiable. Integrated upper and lower limit switches automatically cut power to prevent over-travel. Once the maximum height is reached, the system strictly locks upward movement while allowing safe descent, completely eliminating the risk of structural damage.
Ultra-Quiet Operation
Precision-machined internal components and a refined gear system deliver near-silent running. With only minimal sound during initial brake engagement, it significantly reduces workplace noise pollution, creating a better environment for your operators.
Vibration-Free Stable Lifting
Experience seamless and stable material handling. The advanced mechanical design guarantees smooth lifting and lowering without any jitter or bouncing, perfectly suited for the precise positioning of sensitive equipment, molds, or heavy loads.
TECHNICAL HIGHLIGHTS
Dual Limit
Switch
Electronic
Brake
G80 Manganese
Steel Chain
Ultra-Quiet
Operation
Compact
Design
CE
Certified
TECHNICAL SPECIFICATIONS
YJ-01-01 Specifications
The YEELO 1 Ton Single Chain Low Headroom Electric Hoist is manufactured to rigorous CE and ISO standards. Built with a continuous-duty 1.5kW hoist motor delivering an 8m/min lifting speed and a 0.4kW traveling motor for 4-way electric movement, and equipped with our premium Ø7.1 mm G80 manganese steel load chain, it ensures uncompromising safety and precision for your industrial lifting needs.
Model
YJ-01-01
Capacity
1000 kg
Standard Lift
4 m (Custom lengths available)
Lifting Speed
8 m/min
walking speed
21 m/min
Motor Power
1.5 kW
Trolley motor power
0.4 kW
Power Supply
3-Phase, 380V (Voltage customizable upon request)
Load Chain
Ø7.1 mm G80 Manganese Steel
Duty Class
M5
Protection Class
IP54
Operating Temperature
-30°C to +100°C

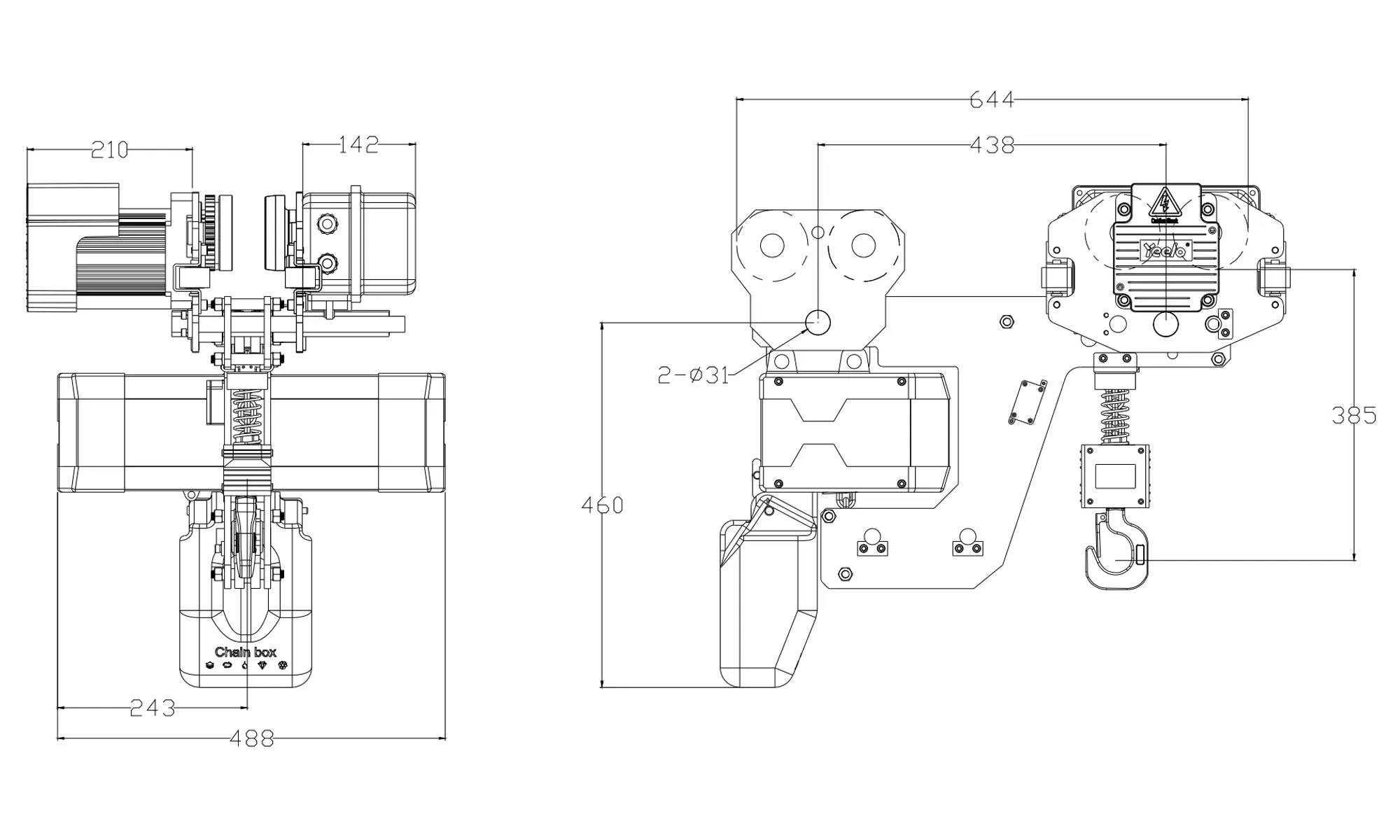

For detailed specifications of the 1 Ton Single Chain Low Headroom Electric Hoist (Low Headroom Type), please refer to the technical drawing below.

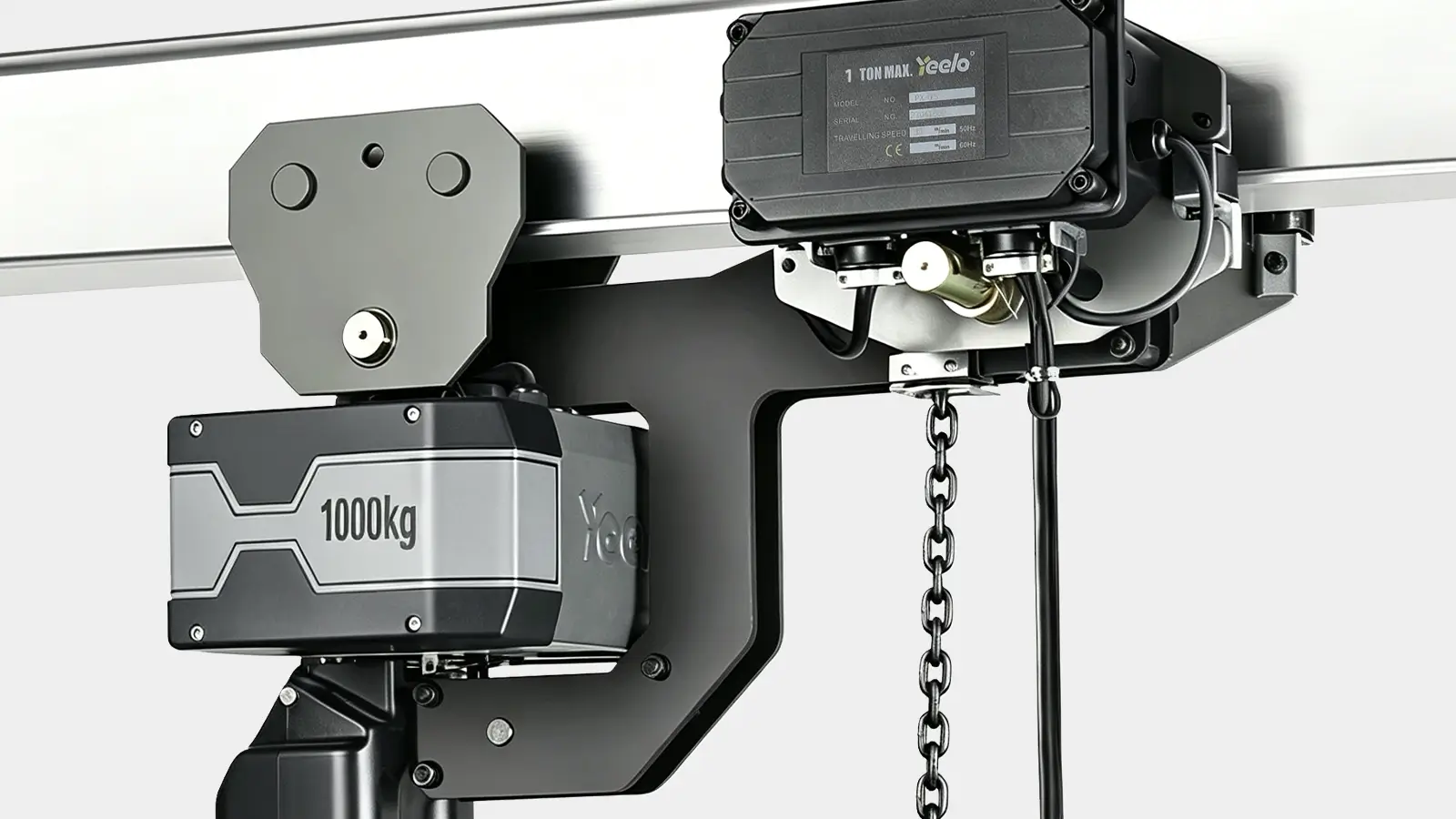

STRUCTURES
G80 Manganese Steel Chain
This 1 Ton Single Chain Electric Chain Hoist is equipped with a premium G80 manganese steel load chain.
M5 Duty Motor & Brake
Continuous-duty motor paired with an instant electronic brake for absolute high-frequency load control.
20CrMnTi Alloy Gears
Carburized and quenched for ultra-quiet, vibration-free, and smooth power transmission.
ABS Polymer Pendant
High-insulation casing with an integrated E-stop, guaranteeing safe and highly responsive vertical operation.
APPLICATIONS
Independent
Workstations
Automotive
Assembly
Heavy
Manufacturing
Construction
Projects
Precision
Machining
Warehousing
Logistics
Request Factory Pricing for the 1 Ton Single Chain Low Headroom Electric Hoist
Leave your specific requirements below. Get the latest factory pricing on this 1 Ton Single Chain Low Headroom Electric Hoist, engineered with our premium G80 manganese steel load chain for maximum safety.
All our manufacturing processes strictly comply with international ISO standards.
